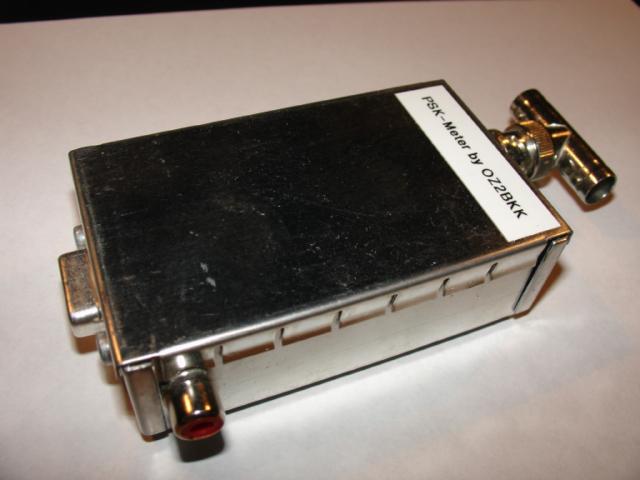

My homebrewed PSK
Meter in a
RF tight box
This PSK Meter is a PIC16F876 processor based controller system made to prevent annoying overload of my PSK signals at HF. The PSK Meter is based on a construction made by George Rothbart (KF6VSG). George has made a lot of nice documentation as can be found bellow.
The PSK Meter has the major function to prevent the annoying overload of a PSK signal transmitted on the amateur radio HF bands. The PSK Meter is based on an external box and a piece of MS Windows based software to run on a Personal Computer. The PSK Meter should be used by everyone running PSK at the amateur radio HF bands.
The external
PSK Meter box has three connectors - a phone connector for 13.8V dc power, a DB9
data connector for serial communication with a connected Personal Computer and
an antenna BNC connector for "tasting" the RF signal.
The 13.8V phone connector is connected to a 13.8V power supply. The DB9
connector is connected to a serial COM port on the Personal Computer used for
the PSK transmission. A T-BNC connector is connected to the BNC at the end of
the external PSK Meter box. One site of the T-BNC connector is connected to the
PSK transceiver and the other site is connected to the HF antenna. Connect the
external PSK Meter box directly to the antenna connector at the rear of the PSK
transceiver. Click a BIG ferrite bead around the antenna cable to prevent RF
current at the outside of the PSK Meter box...!
Turn OFF the PSK transceiver, the 13.8V power supply and closing down WMS Windows on the Personal Computer used for PSK. Connect the external PSK Meter box as mentioned above. Turn on the 13.8V power supply, the PSK transceiver and the connected Personal Computer.
Start the MS Windows program pskmeter.exe (download bellow) and your favorite PSK program. Go to the pskmeter.exe program and do the right COM port setup to get in contact with the external PSK Meter box.
Project schematics, PCB layout and firmware

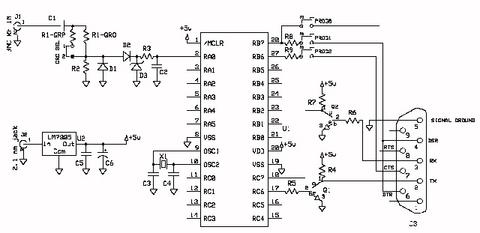

- Schematic of the external PSK box - made by George Rothbart (KF6VSG)
- PCB layout of the external PSK box (coming the 5'th of october 2005)
- Firmware for the external PSK box - made by George Rothbart (KF6VSG)
- MS Windows based software for controlling the external PSK Meter box from at Personal Computer pskmeter.exe - made by George Rothbart (KF6VSG)
- Assembly and software manual - made by George Rothbart (KF6VSG)
- The Digital PSK31 Meter - a digital field strength meter for your PSK31 station - made by George Rothbart (KF6VSG)
- A COM port sharing driver
- Link to George Rothbarts superb PSK Meter page

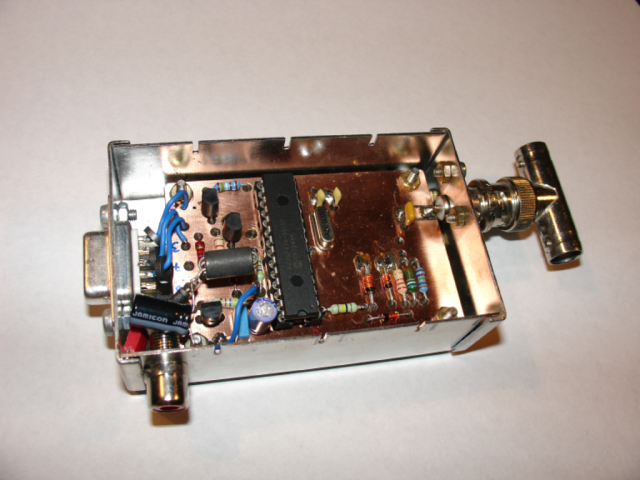

My external PSK Meter box opened.

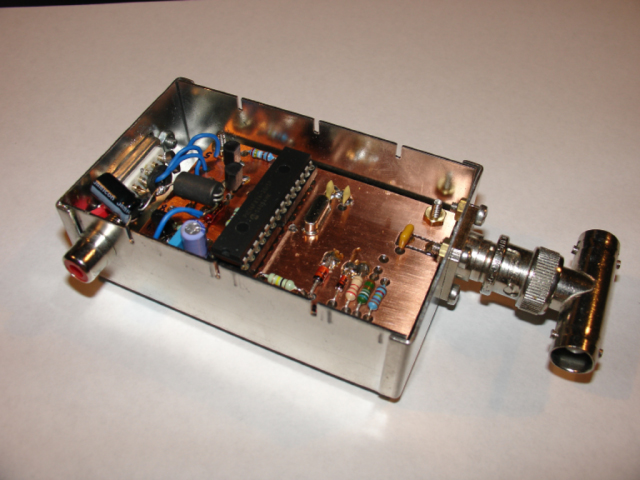

A closer look at my external PSK Meter box project

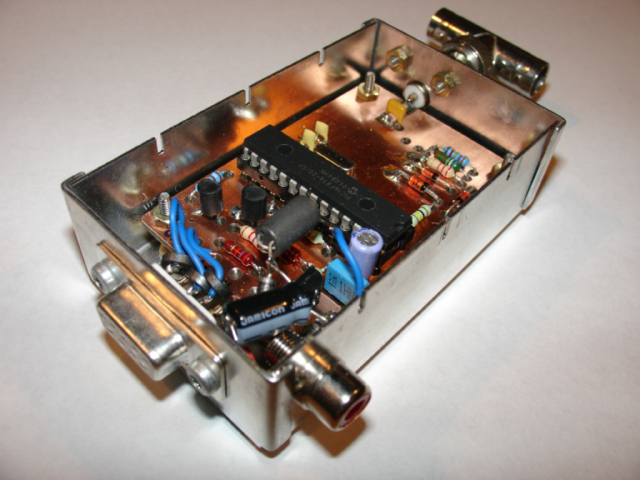

A close look from the
serial communication
end of my external PSK Meter box.
A closer look.

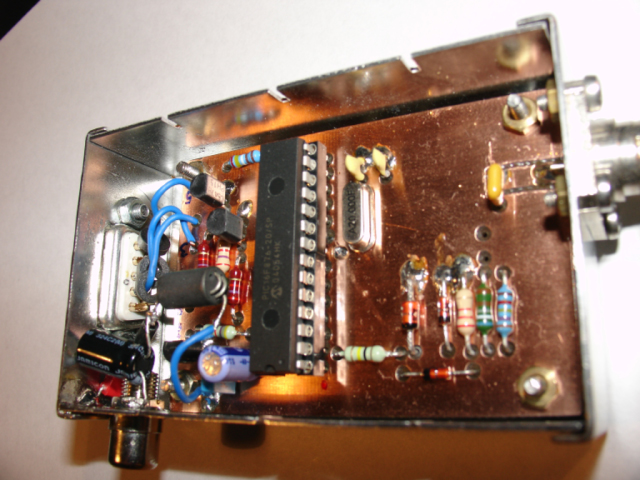

A close look of the RF
part of my external
PSK Meter box.

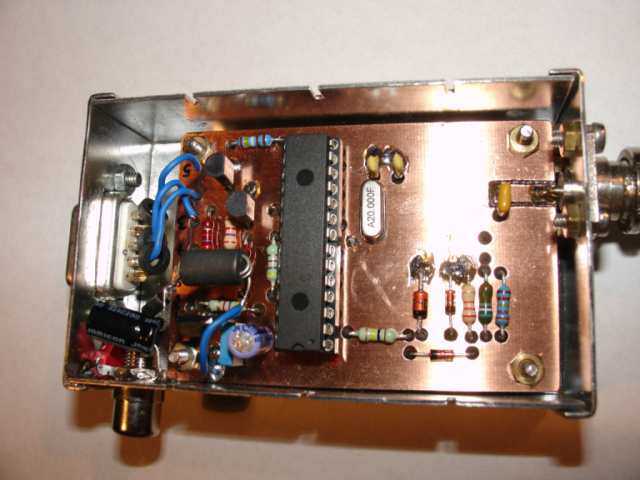

A really close look into my external PSK Meter box.
